Stainless Steel Disc Of Flexible Single Diaphragm Flexible Disc Couplings Laminated Membrane Coupling
Introduction Of JMII Flexible Single Diaphragm Coupling
JMII Elastic Diaphragm Coupling belong to JM series diaphragm couplings. They are made up of several groups of diaphragms (stainless steel thin wrench), and bolts are interlaced with two halves of couplings. Each diaphragm is made up of several sheets. The diaphragm is divided into connecting rod type and whole shape with different shapes. Its elastic deformation is used to compensate the relative displacement of the two axes, and it is a high performance flexible coupling of metal elastic elements. No lubrication, compact structure, high strength, long service life, no rotation clearance, no influence on temperature and oil pollution, it has the characteristics of acid resistance, alkali resistance and corrosion resistance.
JMI Single Diaphragm Coupling
Features
Unitized disc pack
Infinite life when properly aligned
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions
Larger sizes are available upon request
| Power transmission | 0.1 – 70 MW |
| Speeds | up to 80 000 rpm |
| Torque | up to 1 500 000 Nm |
| Design models | single diaphragm double-diaphragm |
| Connection type | Inside hub Outside hub Flange |
| Diaphragm-sleeve connection | Bolted |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
Shipping and Packaging
Product Tags:
|
|

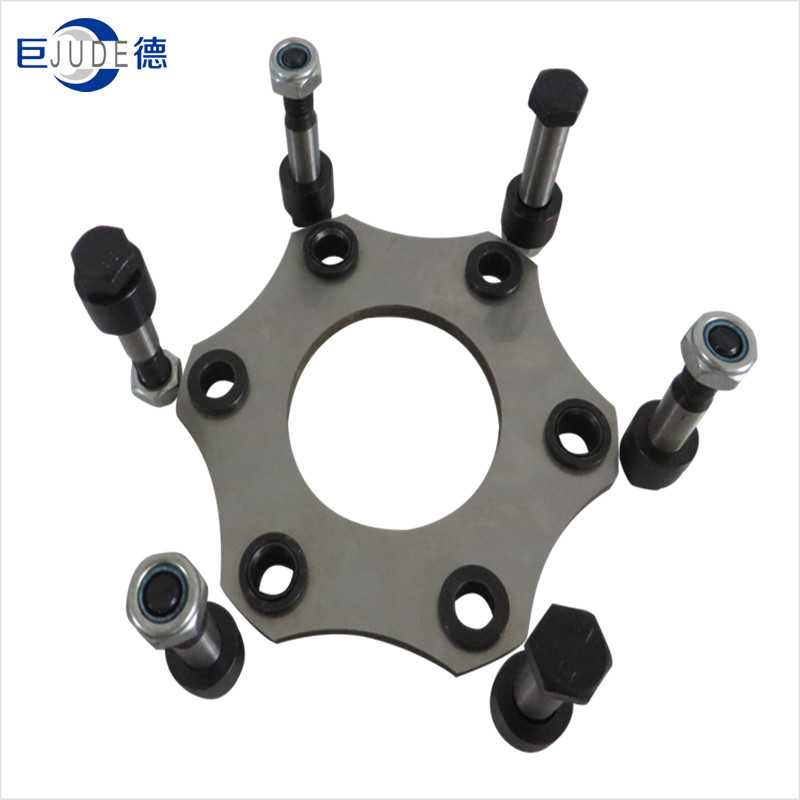

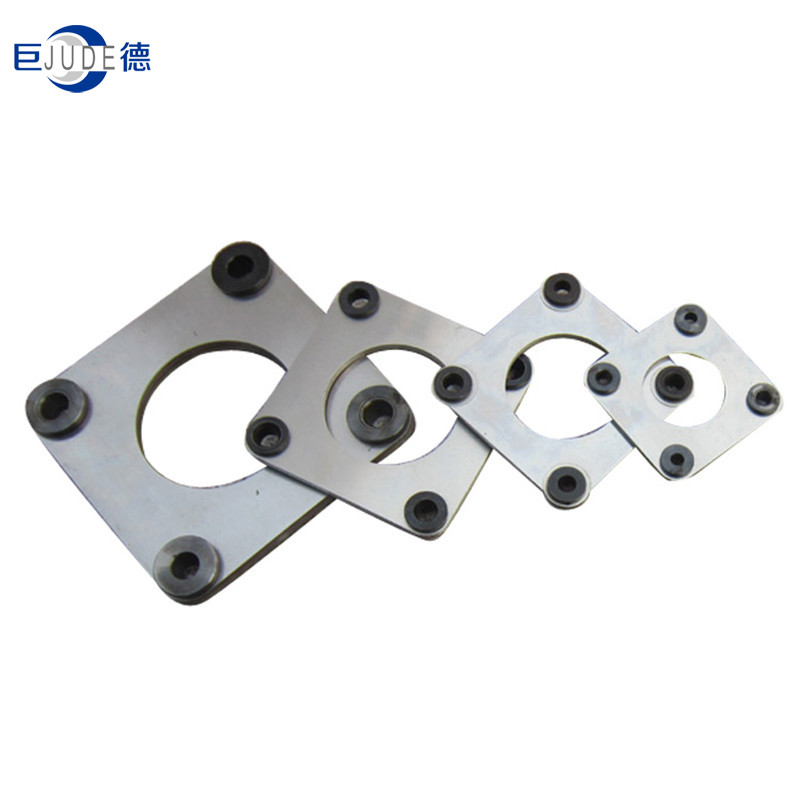

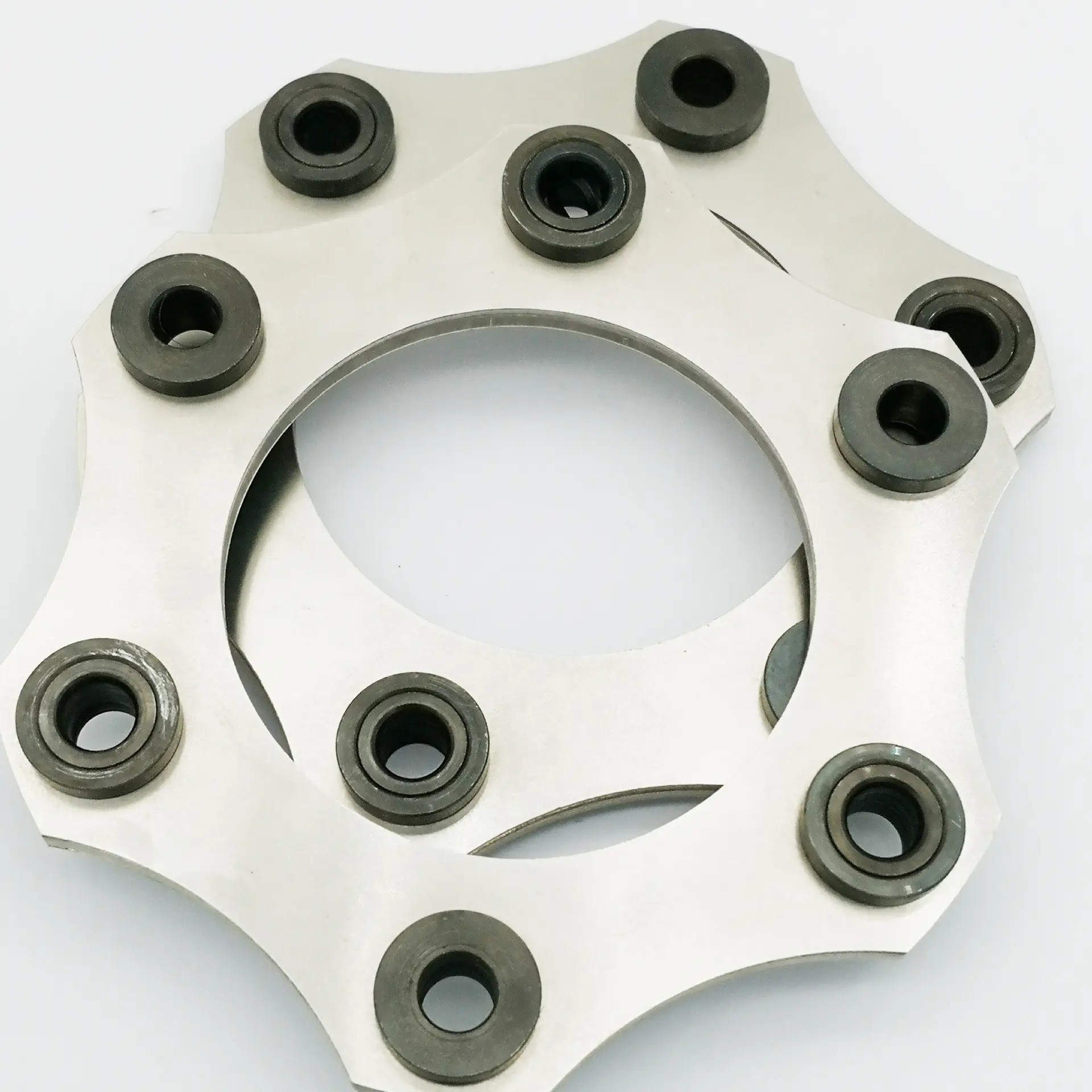

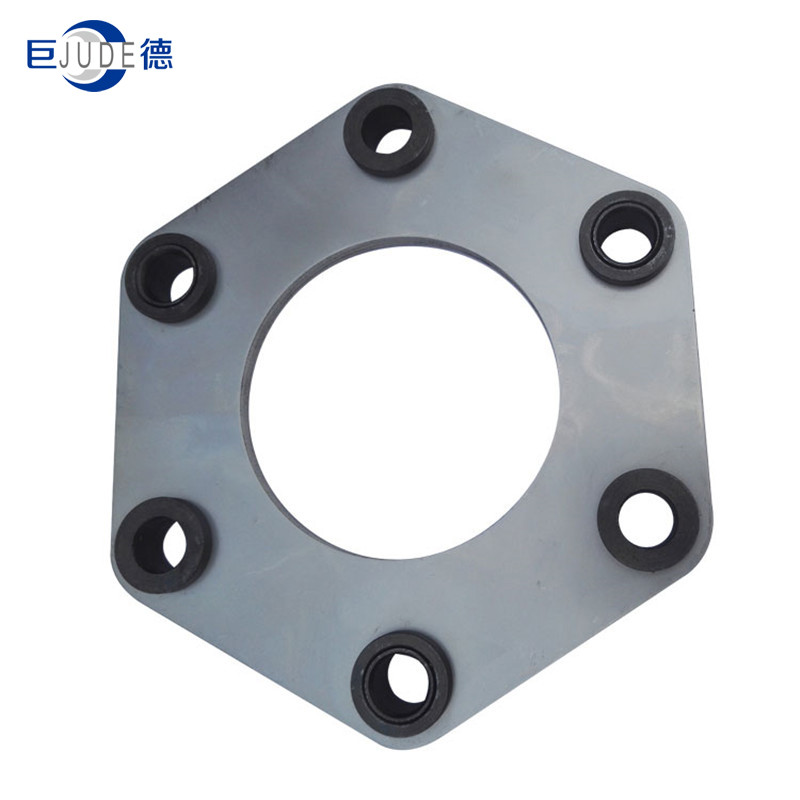

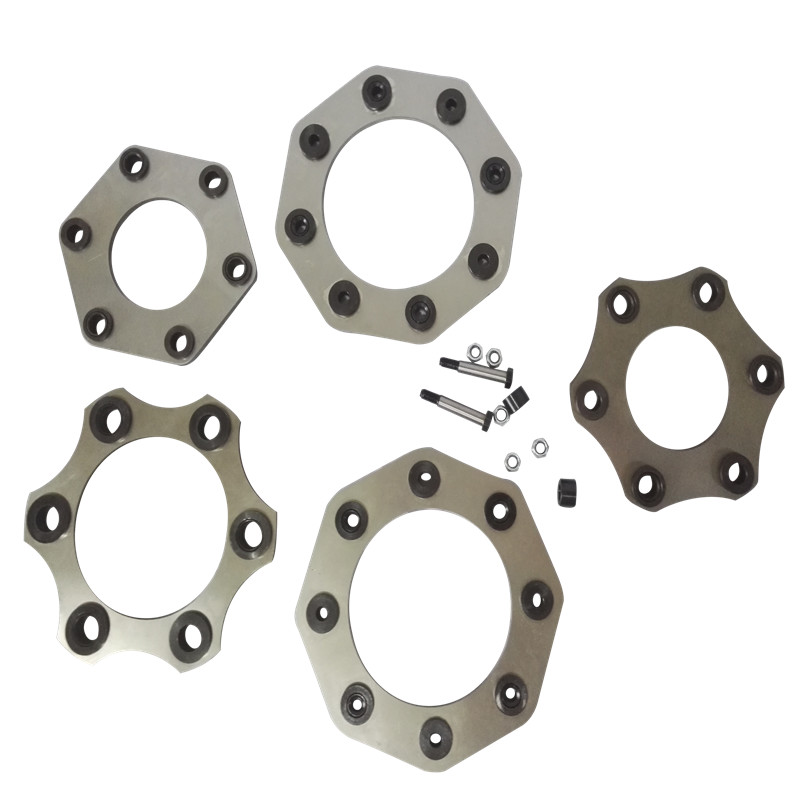

Stainless Steel Flexible Coupling Parts Disc Pack Single Diaphragm Images
|
