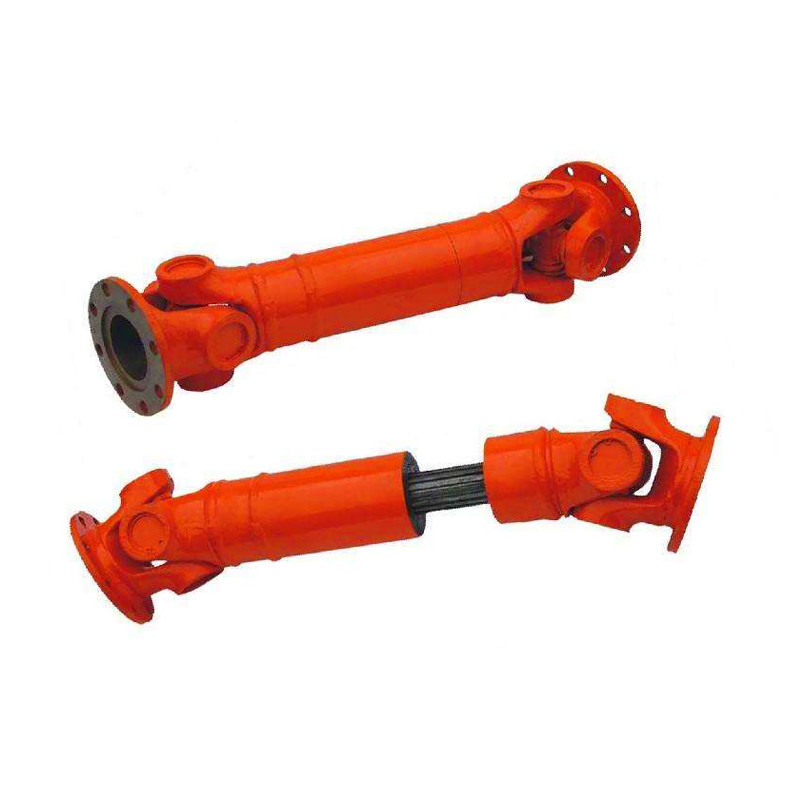

Telescopic Welding Cardan Shaft Coupling Universal Joint SWC-BH Standard

Name: Telescopic Welding Cardan Shaft Coupling Universal Joint SWCBH Standard
Brand: jude
Price: 1 USD

Telescopic Welding Cardan Shaft Coupling Universal Joint SWC-BH Standard Manufactures

Brand Name : jude

Place of Origin : cangzhou、china

Packaging Details : Wooden Box Or Customized

Supply Ability : 1000 Set/Sets per Month

Certification : CE、ISO

Model Number : SWC

MOQ : 1

Warranty : 1 year

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Structure : Universal

Flexible or Rigid : Flexible

Standard or Nonstandard : Standard

Material : Steel

Product name : SWC - BH Standard Telescopic Welding Universal Joint Coupling

Body Material : 45# Steel

Color : red

MOQ : 1 Set

Packing : wooden box

Type : SWC

Payment term : T/T

Keyword : Universal Joint Coupling

custom : yes

Application : Industrial Equipment

Port : Tianjin

Contact Now

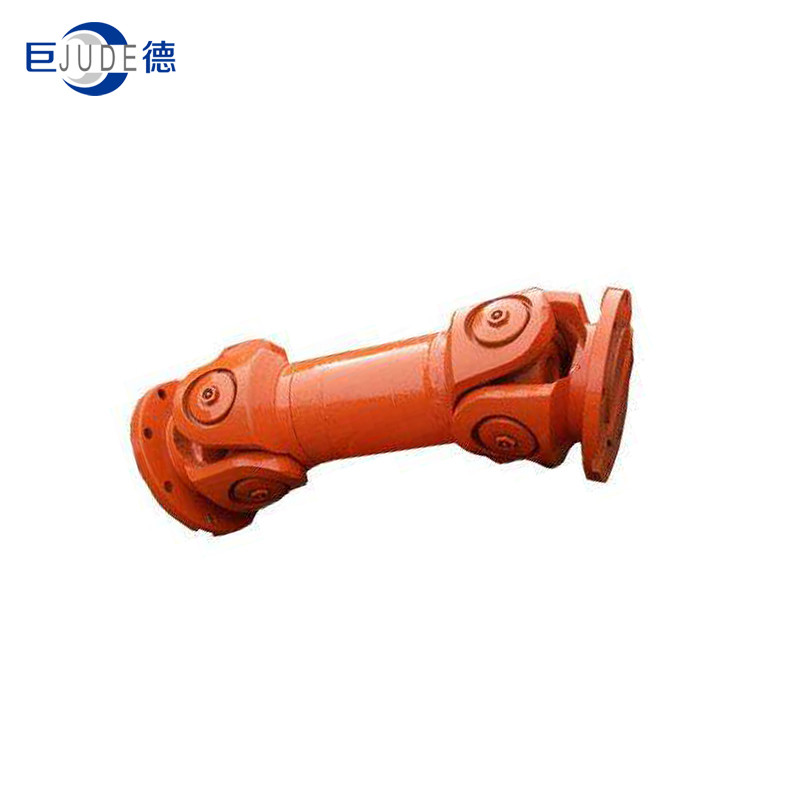

SWC - BH Standard Telescopic Welding Universal Joint Coupling

Cardan Shaft Coupling use:
A mechanical part used to connect two shafts (driving shaft and driven shaft) in different mechanisms to rotate together to transmit torque. In high-speed and heavy-load power transmission, some couplings also have the functions of buffering, damping and improving the dynamic performance of the shafting. The coupling consists of two halves, which are respectively connected with the driving shaft and the driven shaft. Most of the general power machines are connected with the working machine by means of couplings.

The selection of the coupling mainly considers the speed of the required transmission shaft, the size of the load, the installation accuracy of the two parts to be connected, the stability of the rotation, the price, etc., referring to the characteristics of various types of couplings, choose a suitable one. Coupling type.

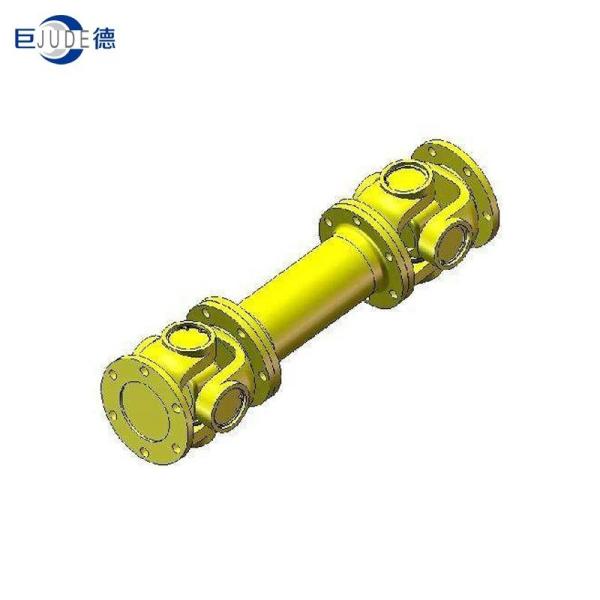

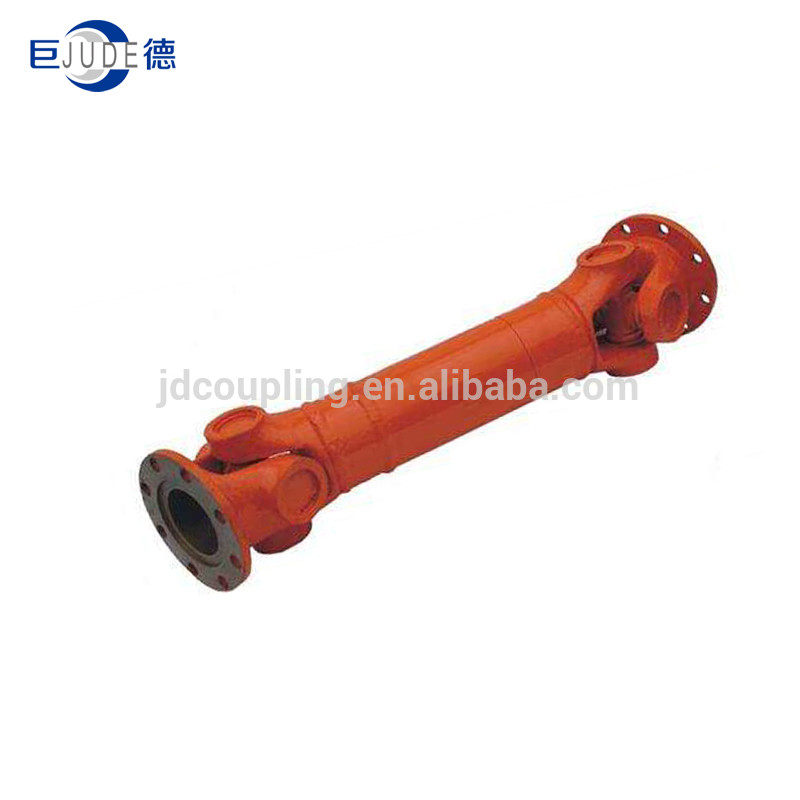

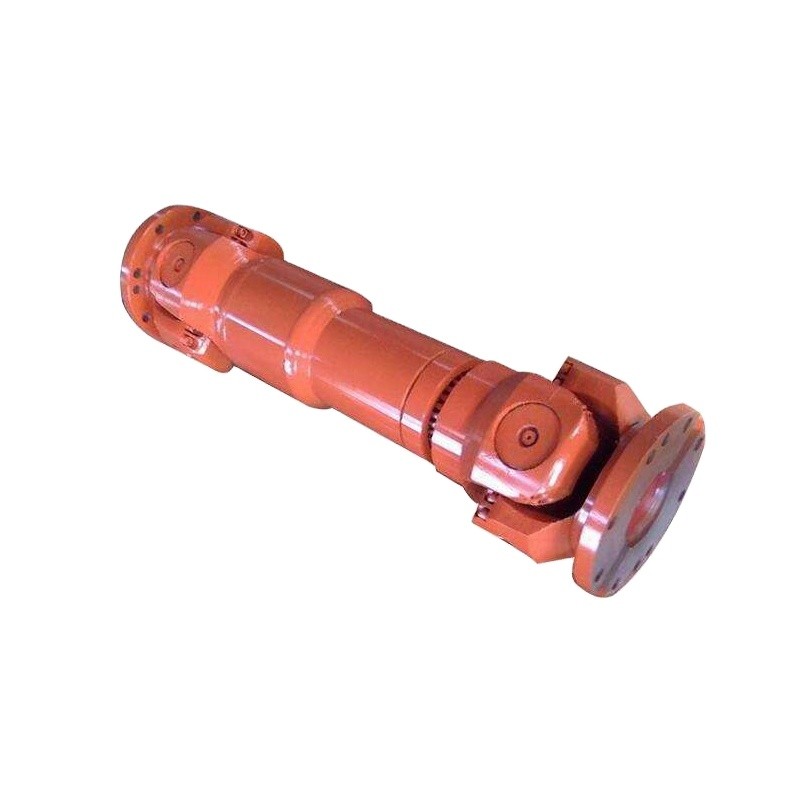

Telescopic Welding Cardan Shaft Coupling Universal Joint SWC-BH Standard

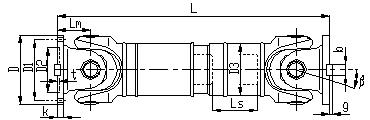

Model	Tactical diameter	Nominal torque	Fatique	Axis rotation	Stretch	Lmin	Size									Rotary inertia		Weight
	D	Tn	torque	β	length		mm									kg.m2		kg
	mm	kN·m	Tf	(°)	LS
			kN·m		mm		D1	D2	D3	Lm	n-d	k	t		g	Lmin	Increase	Lmin	Increase
							js11	H7						b			100mm		100mm
														h9
SWC180BF	180	20	10	≤25	100	810	155	105	114	110	8-17	17	5	24	7	0.267	0.007	80	2.8
SWC200BF	200	32	16	≤15	110	860	170	120	127	135	8-17	19	5	28	8	0.505	0.013	109	3.6
SWC225BF	225	40	20	≤15	140	920	196	135	152	120	8-17	20	5	32	9	0.788	0.0234	138	4.9
SWC250BF	250	63	31.5	≤15	140	1035	218	150	168	140	8-19	25	6	40	12.5	1.445	0.0277	196	5.3
SWC285BF	285	90	45	≤15	140	1190	245	170	194	160	8-21	27	7	40	15	2.873	0.051	295	6.3
SWC315BF	315	125	63	≤15	140	1315	280	185	219	180	10-23	32	8	40	15	5.094	0.795	428	8
SWC350BF	350	180	90	≤15	150	1410	310	210	267	194	10-23	35	8	50	16	9.195	0.2219	932	15
SWC390BF	390	250	125	≤15	170	1590	345	235	267	215	10-25	40	8	70	18	16.62	0.2219	817	15
SWC440BF	440	355	180	≤15	190	1875	390	255	325	260	16-28	42	10	80	20	28.24	0.4744	1290	21.7
SWC490BF	490	500	250	≤15	190	1985	435	275	325	270	16-31	47	12	90	22.5	46.33	0.4744	1631	21.7
SWC550BF	550	710	355	≤15	240	2300	492	320	426	305	16-31	50	12	100	22.5	86.98	1.357	2567	34
SWC620BF	620	1000	500	≤15	240	2500	555	380	426	340	16-38	55	12	100	25	147.5	1.375	3267	34
