92A 98 A Spider Element Insert Of XL GE Rotex Flexible Jaw Coupling, The Same Type Of Rotex Coupling 98 A Spider
Factory Price Abrasion Resistant Polyurethane GR Spider for Flexible Coupling
Features
● Soft Spider (85 Shore A )
● Greatest dampening characteristics
● Best for angular and parallel misalignment
● Maximum speed: 8,000 RPM
● Temperature Range: -10°F to 180°F
● 92 Shore A-Yellow
● Good all around characteristics
● Maximum speed: 8,000 RPM
● Temperature Range: -10°F to 180°F
● 98 Shore A-Red (Hard Spider)
● Greatest torsional stiffness
● Highest torque capabilities
● Most commonly used spider
● Maximum speed: 8,000 RPM
● Temperature Range: -10°F to 180°F
| USAGE |
| | | | | | | |
| This product is apply to machanical shaft coupling,buffered act on the jiont of the transmission shaft. |
| PERFORMANCE |
| | | | | | | |
| Material:PU |
| Torque range:22.4～2500NM |
| Wear tear:<0.05cm3/1.61km |
| Hardness:98A |
| Temperature:-40～100℃ |

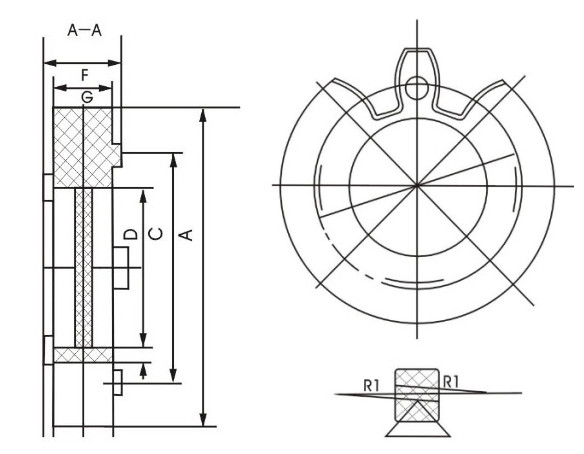

| DETAILED SIZE |
| | | | | | | |
| Type | Materail | OD | ID | Thickness | Thickness | Spider |
| A | D | F | G |
| GR14 | PU | 30 | 10.5 | 12 | 10 | 4 |
| GR19 | PU | 40 | 18 | 14.5 | 12 | 6 |
| GR24 | PU | 54 | 26 | 15.2 | 14 | 8 |
| GR28 | PU | 65 | 30 | 19 | 15 | 8 |
| GR38 | PU | 80 | 38 | 22 | 18 | 8 |
| GR42 | PU | 95 | 46 | 24 | 20 | 8 |
| GR48 | PU | 104 | 51 | 25.5 | 20.5 | 8 |
| GR55 | PU | 120 | 60 | 27 | 22 | 8 |
| GR65 | PU | 135 | 68 | 32 | 26 | 8 |
| GR75 | PU | 161 | 81 | 37 | 30 | 10 |
| GR90 | PU | 199 | 100 | 42 | 34 | 10 |
| GR100 | PU | 225 | 113 | — | 38 | 10 |
| GR110 | PU | 254 | 128 | — | 42.5 | 10 |
| GR125 | PU | 293 | 150 | — | 46.5 | 10 |
| GR140 | PU | 320 | 165 | — | 50 | 10 |
Standard size for polyurethane coupling Spider we provide :
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
Standard size for Rubber coupling Spider :
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Special sizes available according to the your specific drawings
Shipping and Packaging
Product Tags:
|
|

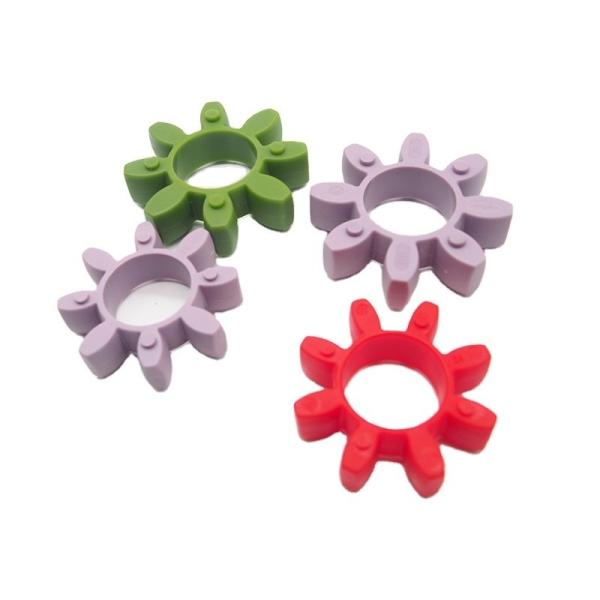

XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider Images
|
